Scope-X
Scope the 'unknown' - an aid for Electronics at Home
An innovative, all-in-one learning module designed to empower students and hobbyists to delve into the fascinating world of electronics from the comfort of their homes. ScopeX combines the functionality of an oscilloscope, signal generator, and power supply into a single, compact PCB.
Product Gallery
Explore the Scope-X in detail with our high-quality product images

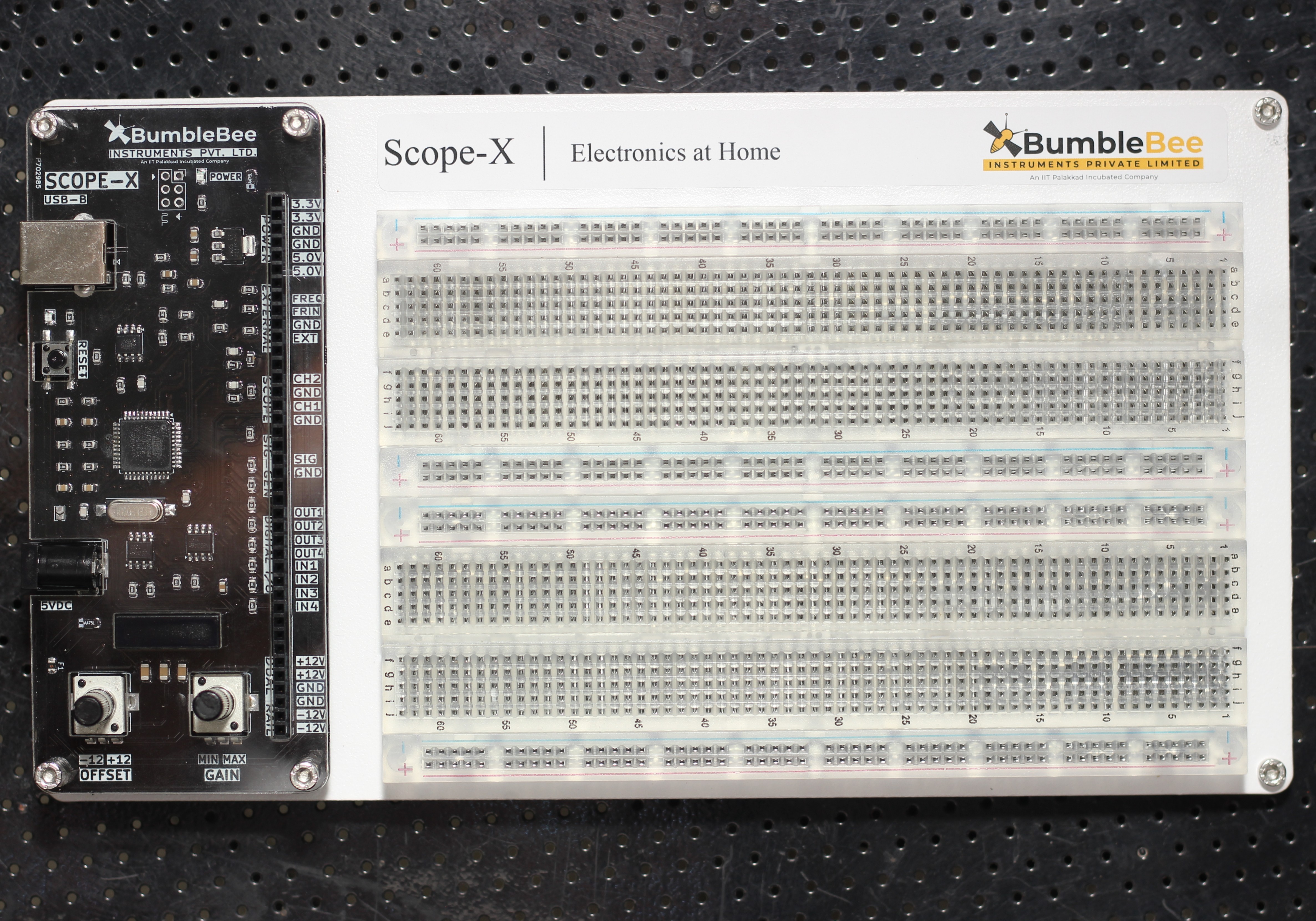

Complete Setup

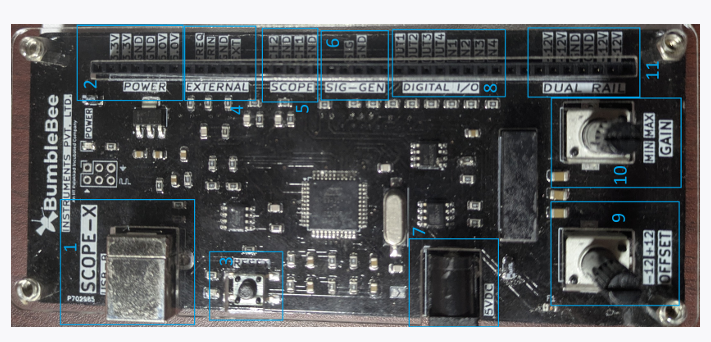

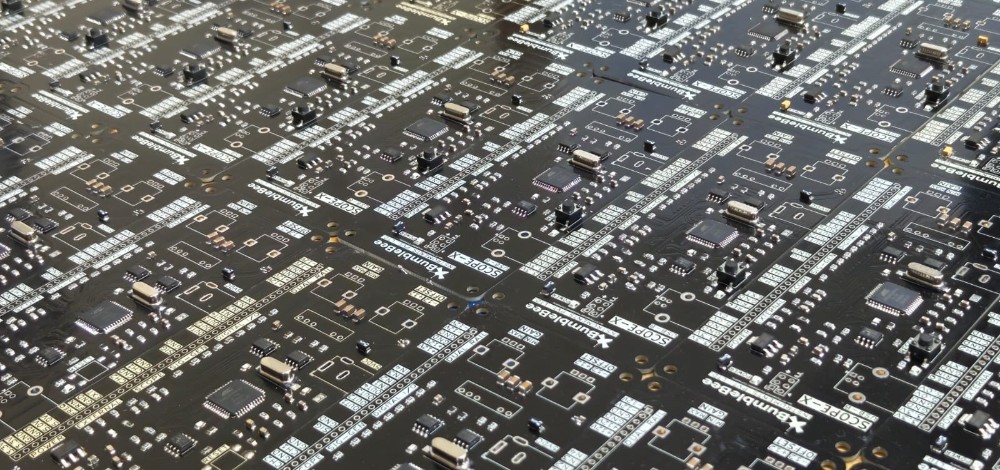

PCB Module Detail

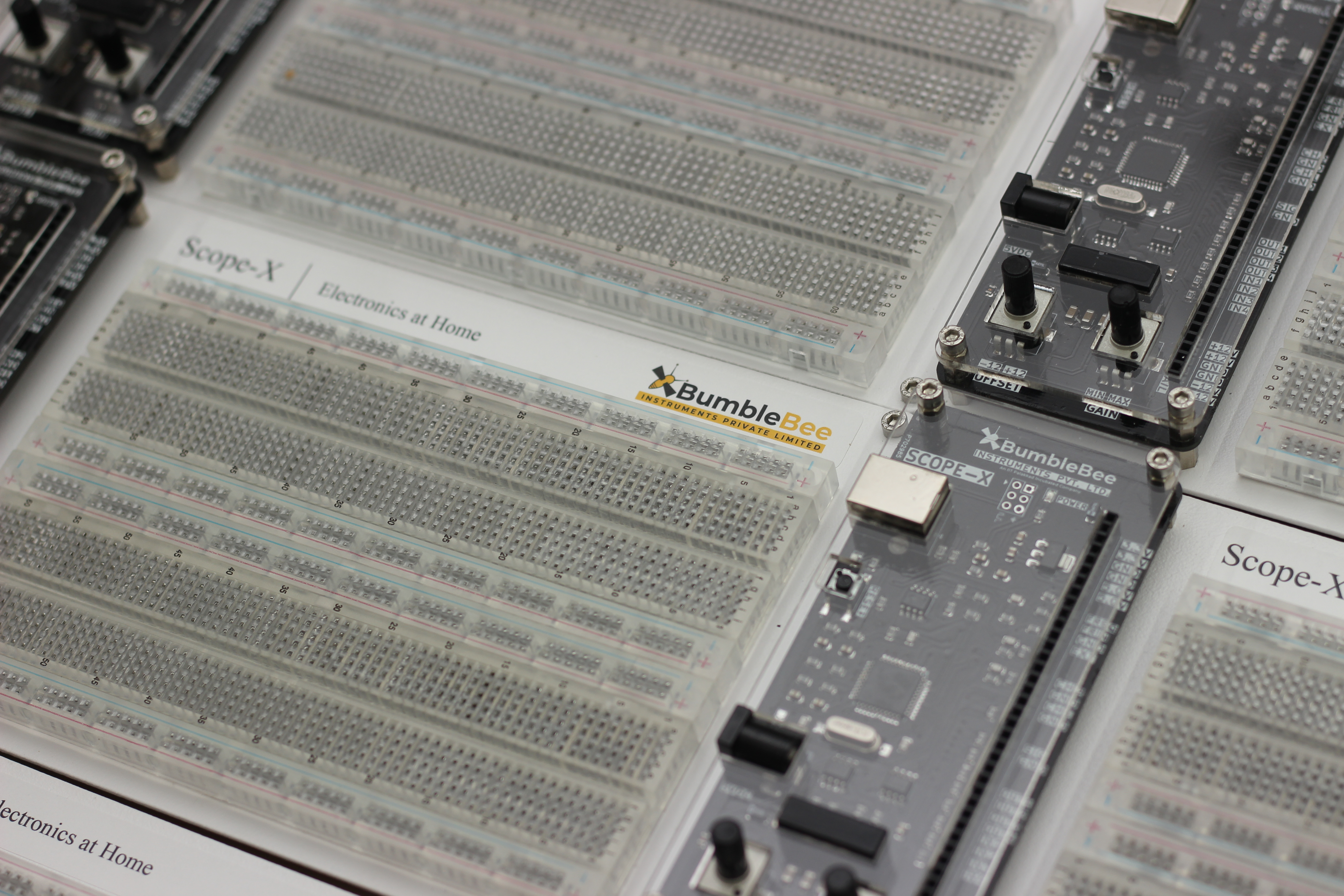

Prototyping Area
All-in-One Solution
Three essential instruments combined into one compact, affordable learning platform
- Max 1 M samples/Sec sampling rate
- Multiple trigger modes
- FFT analysis capability
- Sin, Square, Triangle, Ramp, Arbitrary waves
- Frequency range up to 40kHz
- User settable amplitude and offset
- 5V DC (max 500 mA)
- 3.3V DC (max 500 mA)
- ±12V DC (max 33 mA)
Technical Specifications
Detailed technical specifications for all integrated instruments
- Sine - 40kHz
- Square, Triangle, Ramp and Arbitrary - 25kHz
- 5V DC (max 500 mA)
- 3.3V DC (max 500 mA)
- ±12V DC (max 33 mA)
How can Scope-X be used?
Perfect for students, hobbyists, and professionals exploring electronics
Study operational amplifier circuits, analyze their behavior, and understand their applications in real-world scenarios.
Experiment with digital logic circuits, timing analysis, and understand digital signal behavior.
Design and test analog filters, analyze frequency response, and understand filter characteristics.

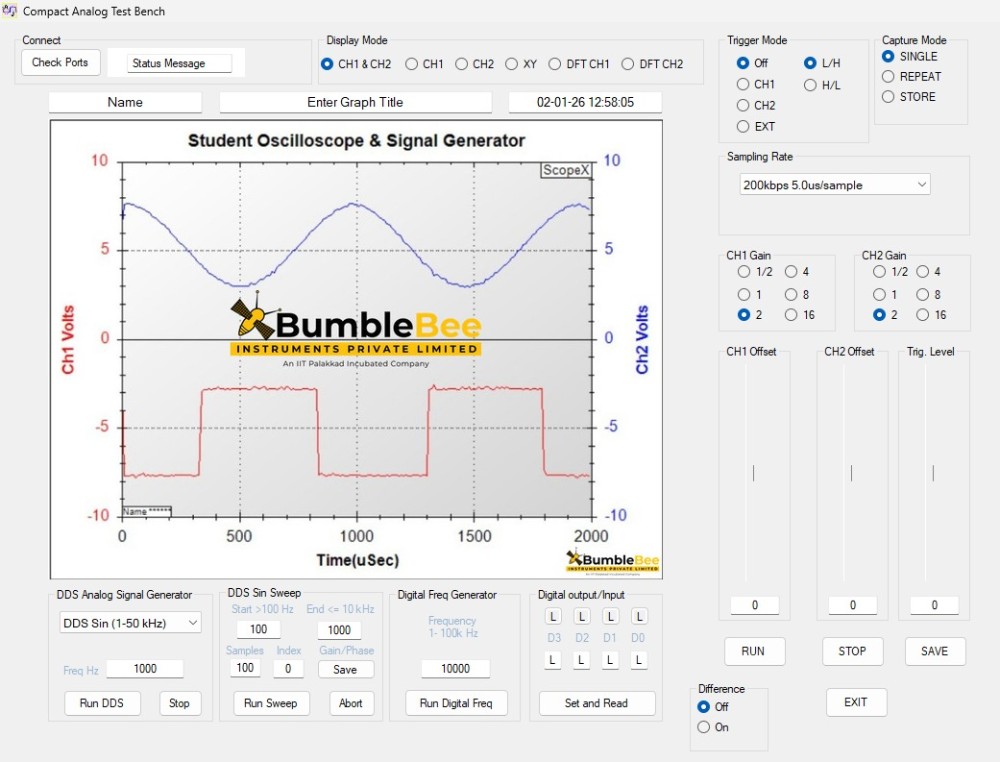

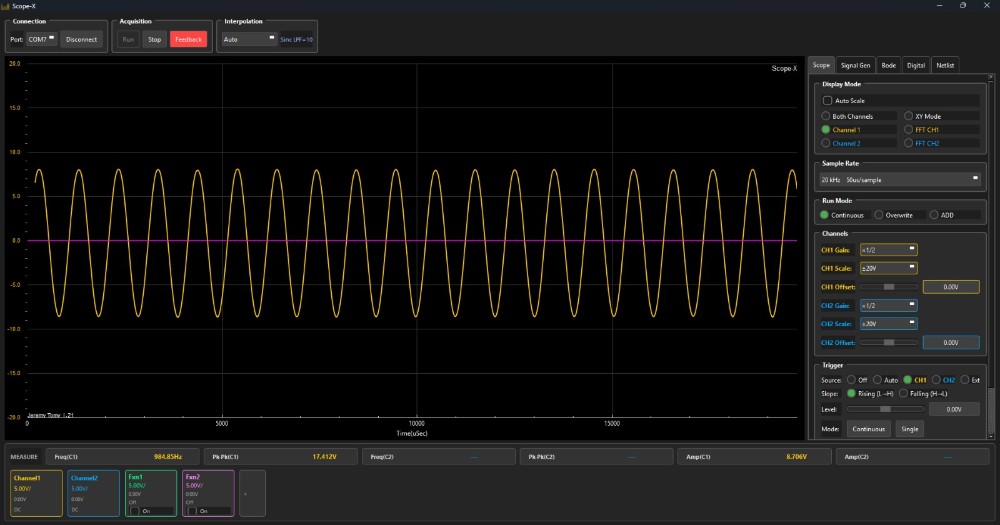

Intuitive Software Interface
The Scope-X comes with user-friendly software that provides all the controls and visualization you need for your electronics experiments. Compatible with Windows 10 and above.
Key Software Features
The Compact Analog Test Bench software provides an intuitive interface for controlling all aspects of the Scope-X hardware. Students and hobbyists can easily visualize signals, adjust parameters, and experiment with different electronic circuits.
Download the complete user manual with detailed instructions, examples, and troubleshooting guide.
The manual includes setup instructions, software installation guide, circuit examples, and comprehensive troubleshooting information. The software package contains everything you need to get started.
About Bumblebee Instruments
We specialize in advanced instrumentation for R&D, focusing on areas such as Solar cell characterization, Source Measurement Units, XY stages, lock-in amplifiers, and STEM Education kits. The company is committed to producing high-quality, locally developed equipment to meet the rigorous standards of modern scientific research.
