Our Products
Discover our complete range of high-quality scientific instruments designed for research laboratories and STEM education. Each product is locally designed with precision and innovation in mind.
Premium Collection
Our flagship premium instruments designed for advanced research and professional laboratories.

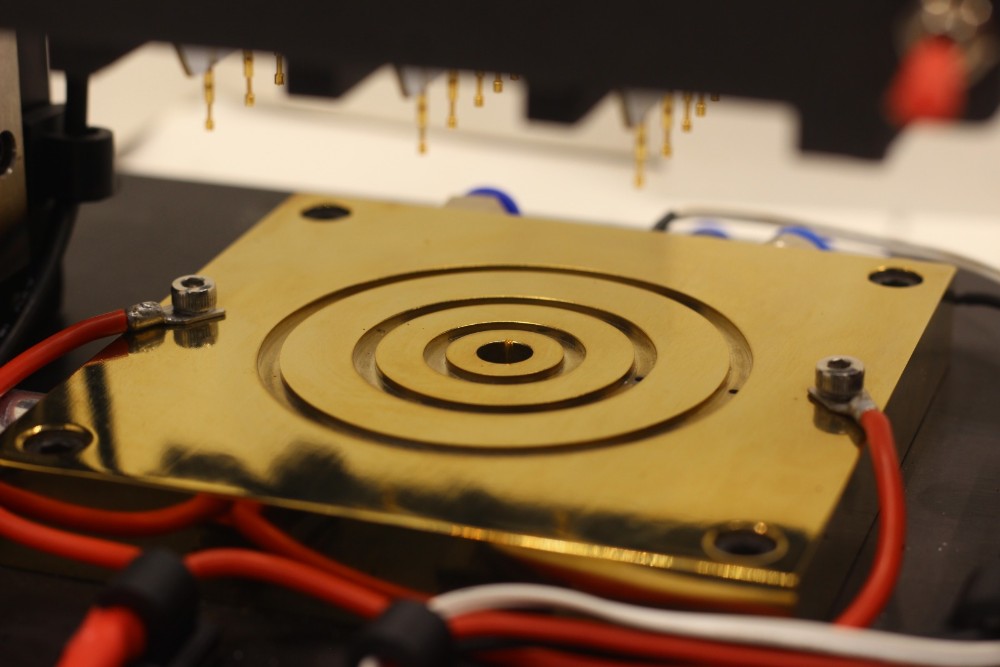

Photovoltaic Cell I-V Test Stations
This precision solar cell testing setup features a dual-zone vacuum chuck designed to securely hold 1-inch, 2-inch, and 3-inch cells. It enables accurate I–V characterization using a shadowless manual probing system with support for up to 3 busbars and 7 pogo pins per PCB. The platform incorporates isolated voltage and current measurement for both top and bottom contacts. A water-controlled top plate ensures temperature stability for repeatable and reliable measurements. Engineered for high-precision PV IC testing, this setup is ideal for lab-scale efficiency evaluation under controlled conditions.

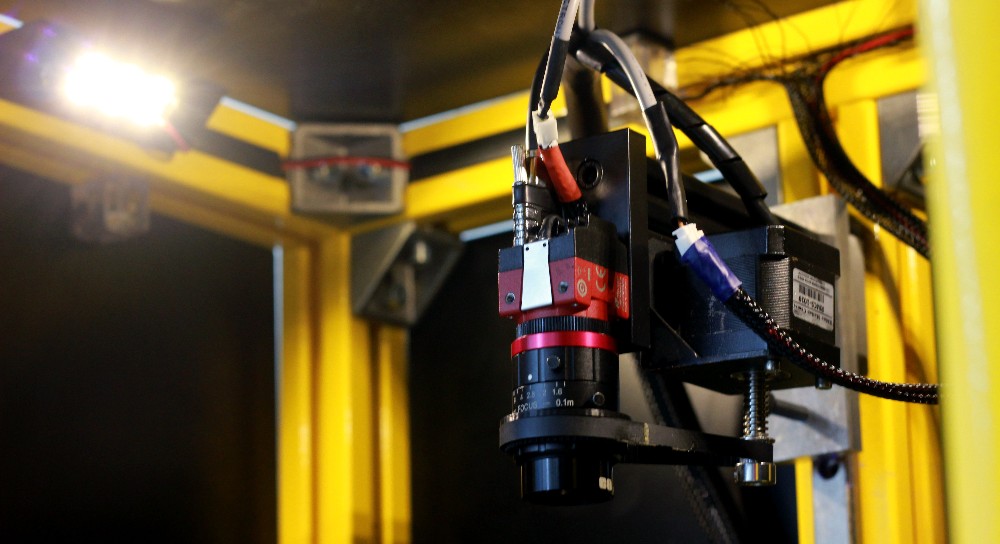

Electroluminescence Imaging Device (EL - Device)
This product is a high-sensitivity Electroluminescence (EL) Imaging System designed for non-destructive quality control and defect analysis of solar cells. By applying a forward bias to the photovoltaic cell, the system captures near-infrared emissions to reveal "invisible" structural flaws—such as micro-cracks, PID (Potential Induced Degradation), inactive regions, and finger defects—that are undetectable by standard visual inspection. Our EL imaging solution provides high-resolution spatial mapping to ensure peak efficiency and long-term reliability of solar assets.

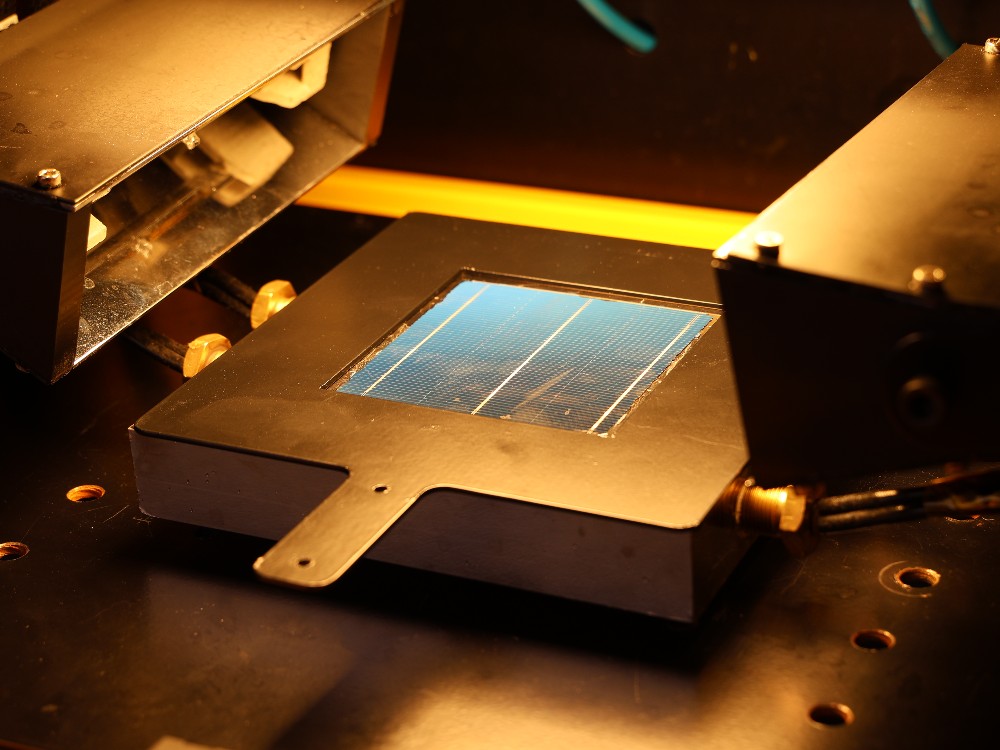

Temperature-Controlled Chuck
The BBI-CH-250 is a precision temperature-controlled chuck capable of reaching 250◦C from ambient in under 60 minutes, with ±1 ◦C set-point accuracy maintained via closed-loop PID control. The 15 mm thick substrate available in copper or aluminium features a 20 µm electroless nickel coating and delivers uniform heating across a 200 × 200 mm2 working surface. Temperature measurement is handled by an embedded 3-wire PT1000 sensor, with control provided through an included electronics box fitted with an touchscreen display.
Elite Collection
High-quality instruments perfect for educational institutions and standard laboratory applications.
Need Help Choosing?
Our team of experts is here to help you find the perfect scientific instrument for your research needs.
